Filler & cement level indicators
|
ED100 point level indicator - This RF Admittance indicator provides a single point level warning when linked to an alarm unit and can be positioned vertically or horizontally into the silo for use as a high or low level warning device. The probe is not affected by product build up and there are no moving parts to jam or break. Vertically positioned indicators can be installed without emptying the silo. Probe: 1m standard Power input: 110v or 230v ac 0.5A Output: ED109 alarm unit or one volt free change over contact rated 230v 1A Push button sensor testing: Our alarm units incorporate a test push button which applies an input to the sensor head to simulate a high level, so that the electronics in the sensor head and the audible and visual warnings can be tested prior to filling. Optional items:
|
 |
|

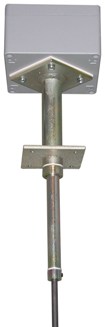

ED202 continuous level indicator - the RF Admittance level indicator is our instrument of choice for monitoring filler and cement levels. The sensor head is easily installed and calibrated without interrupting production and when connected to our dual digital display it shows silo contents and available space readings. If you wish to incorporate the dual digital display and a control systems display an additional 4-20mA interface unit is required. Probe: 10m standard 6mm steel wire rope and bobweight 4-20mA output available Silo contents display: showing usable contents and available space readings Weatherproof enclosure IP67 150w x 300h x 80d (mm) Dual backlit LCD digital display Power input: 110v or 230v ac 0.5A Output: Connections for the ED109 alarm unit and two volt free change over contacts rated 230v 1A Optional items:
|
 |
|

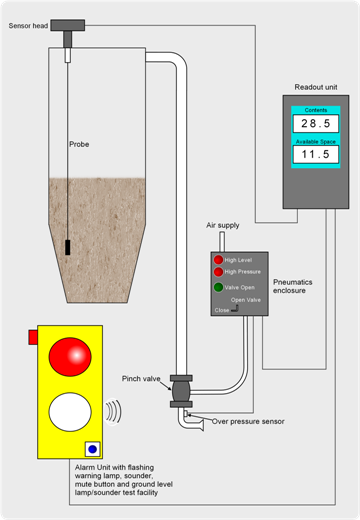

The Ellguard Silo Monitoring System is designed to help you manage the safe delivery of filler and cement by continually monitoring the silo contents level and the pressure of the fill pipe during a delivery. In the event a high level or over pressure warning is triggered a shut off valve automatically closes to prevent further filling. This key protected system prevents unauthorised filling and provides at a glance contents and available space readings to help with inventory management. Features:
Continuous level probe: ED202 - RF Admittance probe Silo contents display: showing usable contents and available space readings Weatherproof enclosure IP67 150w x 300h x 80d (mm) Dual backlit LCD digital display Pneumatics enclosure: key operated panel with warning lights Pinch valve: Power input: 110v or 230v ac 0.5A |
 | ||
 |
 |
 |
 |
